Plastic Powder Coating Spray Booth with Cyclone Recovery System

- Innovative plastic material spray booth
- Maximize efficiency during cleaning and color change

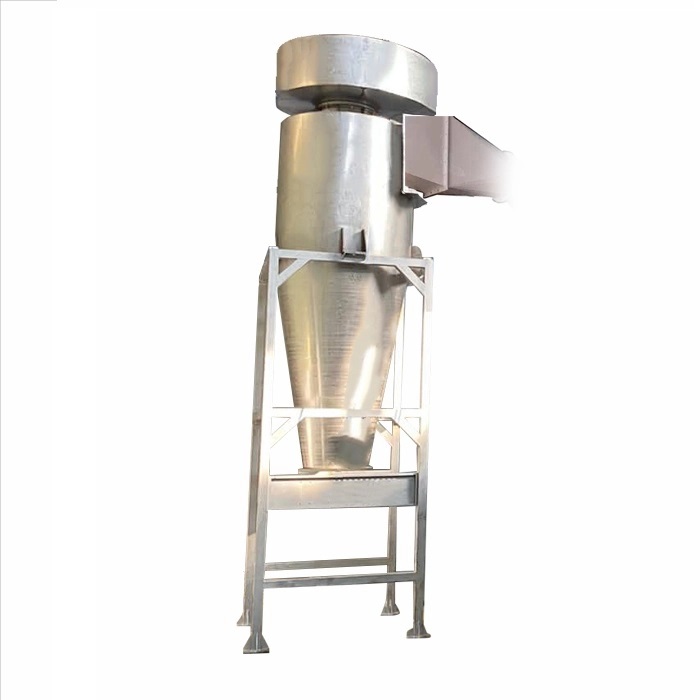

- Mono cyclone design
- Automatic booth system
- Worked with reciprocators and auto powder guns

Quantity:
  • COLO-Plastic Booth
  • COLO

Plastic Powder Coating Spray Booth with Cyclone Recovery System

The powder coating booth body made of enginner plastic material, anti-static, without absorbtion of powders, maximize the spraying efficiency and reduce powder waste. Integrated with the mono cyclone recovery system, the plastic booth gives great experience in the frequent color changle line


plastic powder coating booth

Powder Coating Booth Advantages

  • The booth bottom can be designed with automatic plate turnover device or pulse cleaning air device ensures no powder accumulation at the bottom

  • Mono cyclone device achieves the separation efficiency up to 98%, a great saving of powders.

  • High precsion and long lifespan filters as the secondary recovery system, capture the dust even 0.1 micron, ensure clean air discharged to the outside.

  • With an open manual coating platform, gives convenience for spraying large workpieces in complex shapes.

  • Worked with reciprocators, automatic spray guns, conveyor systems.



A variety of booth bottom designs for choices, can be suitable for different workpieces.

powder coating booth



Double recovery system booth extending the life of the filter, self-cleaning, convenient and quick change color. more than 95% powder recovery.


Double recovery system means cyclone and filter devices work together to complete the powder recovery,the qualified powder is collected in the hopper under the cyclone, the smaller powder blow to the filter to finish the last recycle.

Double recovery system has the following advantages:
1, most recovery is completed by the cyclone, therefore, greatly extending the life of the filter.
2,During the cyclone recovery process, the superfine powder is sent to the filter, and therefore superfine powder will not cycle between ultrafine spray booth and recovery system to avoid the effects of powder coating results.
3, more than 95% powder recovery by the cyclone, the filter need only recovery about 5% powder,avoid filers be blocked by powders.
4, The cyclone recovery system with self-cleaning function, cleaning is simple, convenient and quick change color.


Specification:


No.


name


    data

1


Outer size of powder room:


6000mm×1400mm×2500mm(refer to layout)(1set)

2


Material of powder room:


side\top\bottom board: δ1.2mm galvanized board (surface spraying)

3


Inverter lift


2sets

4


Closed-circuit system


1set

5


Automatic electrostatic sprayer:


4sets

6


Manual sprayer


3sets

7


12 cores recycling

 of the upper and lower device


1(hot plate and cold plate to make) the height of filter:660mm

8


Recover fan


1sets(15Kw)air volume:20000m3/set



9


Explosion-proof fluorescent lamp;


Each 1 piece of unilateral
