COLO-Plastic Booth
COLO

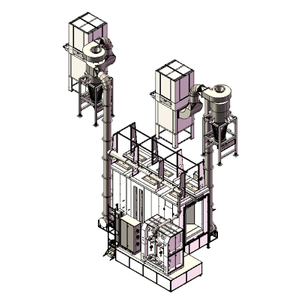

Anti-Static Automatic Powder Coating Spray Booth with Cyclone Recovery, Which constructed with plastic booth chamber and stainless steel cyclone, which is specially built for multi-color coating lines. As the booth wall is made of anti-static plastic it does not attract powders which minimizes powder accumulation on the surface. It is the best choice for quick color change and high powder recovery demands.
Automatic Powder Coating Spray Booth Features
1. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders. A quick cleaning takes around 15 minutes.
2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
3. The booth floor integrated with various air cleaning system, periodically removes the powder accumulated on the booth floor and push it to the extraction and recovery system. The booth floor remains clean, with just a minimum amount of powder.
4. Allows custom design to select 2-24 pcs of auto spray guns to achieve any scale of production, one central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.
5. Powder self-recycling feed center ensures maximum utilization of powder and least waste, so you no need to worry about the automatic powder recovery, filtering and powder return to the powder hopper.
Stainles Steel Mono-Cyclone
Cartridge FIlter Recovery
PP Plastic Spray Booth Wall
How does the air-knives work?
1. Air-knives are integrated in the side-walls of the Stainles Steel floor.
2. During operation and cleaning air blasts are periodically released by the air knives.
3. The air blastsre move the powder accumulated on the booth floor and push it to the extraction and recovery system.
4. The booth floor remains clean, with just a minimum amount of powder.
Automatic Powder Coating Spray Booth Applications
The automatic powder coating spray booth with cyclone applied in automatic powder coating line can get high efficiency and save powder. It suitable for batch coating metal workparts such as truck parts and aluminium profile, door frame...
Automatic Powder Coating Spray Booth Specifications
| Model | COLO-S-PP |
| Booth Type | Automatic Type |
| Operator dimensions | Width1700 x Height 2100 x Length8600 mm |
| Weight | 4000kg |
| Power supply | Electric |
| Nominal power | 15kw |
| Voltage | 380V/220V. customized as local. |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 32pcs (325*600) |
| Filters hang type | Rotary Wing, help filter cleaning |
| Filter cleaning system | Pneumatic |
| Booth Material | Wall:PVC; Floor PVC & Stainless Steel |
| Cyclone Material | Stainless Steel |
| Warranty | 12 months |
How does double recovery stage powder booth work?
The Double Recovery System means cyclone and filter devices work together to complete the powder recycling, oversprayed qualified powder is collected in the hopper under the cyclone, while the ultrafine powders are delivered to the filter to finish the last recycle. With benefits of:
1. Most recovery is completed by the cyclone, therefore, greatly extending the life of the filter.
2. As superfine powder is sent to the filter, it will not be recycled to affect the powder coating results.
3. The cyclone recovery system with self-cleaning function, maxmize the efficiency during color change
