powder coating line hangers

  • 10.0~20.0 USD
  • T/T
  • Zhejiang, China (Mainland)

Product Detail

Means of Transport: Ocean
Delivery Date: 7-15days
Certification: CE
spreader: Conveyor Powder Coating Lin...
Packing: wood box
Automation: Automatic
Brand Name: COLO

Cross type hanger, work with "Y"hanger. The cross type hanger run into the steering gear could make the suspended workpiece Spin 90°when the chain run

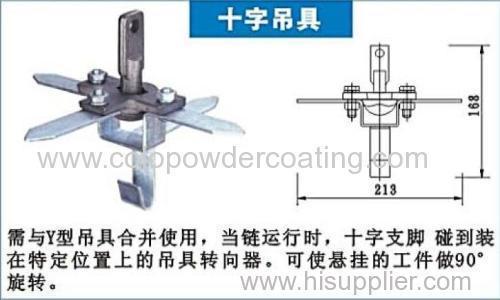

Cross spreader

Required and the Y-type spreader used incombination when the chain is running, cross branched angle encounteredin a specific location on the spreader diverter. Suspension of the workpiece can do 90-degree rotation.

Cross disc spreader


Cross disc the spreader structure and thecross spreader is basically the same, plus a disc at the top of the hookto catch the track drops of oil to prevent contamination of theworkpiece.

Gear disc spreade r

When the chain is running gear and fixed at aspecific location on the tooth row with the use of the workpiece thatcan be hoisted to do continuous rotation.

Y-spreader

Directly connected to the chain, easy to install, fast. Its lower end is often connected with the cross the spreader or cross disc spreader

Piece flange


For the track connected to each other, ease of construction and maintenance, M10 * 20 bolts.
The C-type spreader, spreader designedspecifically for demanding paint factory, the middle can be attached tothe tank, to prevent dust from falling to the workpiece size accordingto customer specific.

Spreader steering

Usually used in conjunction with the crosshanging or cross disc spreader is installed in a specific location onthe line, fixed with bolts on the track, when the cross spreader walkingto the steering gear position, cross branched tripod encounteredsteering. 90-degree rotation.
The installation of the hanger rail card andtighten the screws in the hanger, so installation location to asignificant increase in reliability, and easy disassembly.

Linked to an electroplating

This spreader is designed for electroplating factory for plating rack use.
Single-point rack

Direct side connected to the chain, andconvenient installation features, its lower end connected to the crosshanging or cross disc spreader.

Electrophoresis spreader


This spreader is specially designed forelectrophoresis line, in the middle can be mounted tank, to prevent dustfrom falling to the workpiece, size according to customer specific.

U-shaped spreader
For a lower working environment, artificial rotation, work can be positioned every 90 degrees

Bearing spreader

The bearing spreader can be arbitraryrotation, suitable for connection with the Y-spreader should generallybe in the 15kg weight.

Peilin gear spreader

When the chain is running gear and fixed at aspecific location on the tooth row with the use of the workpiece thatcan be hoisted to do continuous rotation. Desirability of including one hanging piece chain is connected.

Bearing disc spreader

The bearing spreader can be rotated to increase the small disc, to prevent dust and to work.



Cross type hanger, work with "Y"hanger. The cross type hanger run into the steering gear could make the suspended workpiece Spin 90°when the chain run.
