powder coating line conveyor chain

  • 10.0~30.0 USD
  • T/T
  • Zhejiang, China (Mainland)

Product Detail

Model No.: colo-c
Packing: wood box
Extra Services: Painting / Powder Coating
Certification: CE
spare parts: Conveyor Powder Coating Lin...
Type: Overhead Conveyor Chain
Tensile Strength: 5tons
Means of Transport: Ocean,Air
Delivery Date: 15days
Automation: Automatic
Brand Name: COLO
Standard or Nonstandard: Standard
Material: Alloy

powder coating line conveyor chain
Used for automatic powder coating plant
many types could choose

powder coating line conveyor chain
Used for automatic powder coating plant
many types could choose

technical parameters:
QXG-150 QXG-150B QXG-200A QXG-206 QXG-250 QXG-300A
type
Chain pitch mm 150 150 200 206 250 300
Single-point lifting weight kg 8 8 30 30 50 120
Allowable chain tension
KN
2.5 2.5 3 3 5 10
Chain breaking force KN ≥25 ≥25 ≥30 ≥30 ≥50 100≥
chain weight kg/m 2.83 2.83 5.2 5.11 7.9 13
Rail Weight kg/m 4.36 4.36 7.18 7.18 8.12 14.6
Running speed
m/min
0.26-2.60.52-5.20.87-8.71.21-12.11.51-15.1 0.18-1.80.25-2.50.36-3.60.51-5.10.62-6.20.88-8.8 0.18-1.80.25-2.50.36-3.60.51-5.10.62-6.20.88-8.8 0.15-1.50.4-40.74-7.41.1-111.4-14 :3.9\4.4\6.0\7.3\8.7\9.9\11\13.2\15.49:0.34-3.40.5-50.7-71.12-11.2 0.2-20.3-30.41-4.10.61-6.11.04-10.4
Variable speed range 1:10 1:10 1:10 1:10 1:10 1:10
Operating Temperature ℃ -20-200 -20-200 -20-200 -20-200 -20-200 -20-200
Conveyor power KW 0.75\1.1 0.75\1.1 1.1

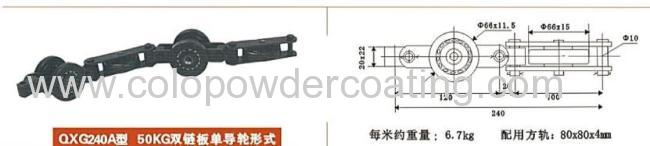

QXG240A---- 50kgs Double board single guide wheel
Per meter weight: 6.7kg,       Equipped with side rails: 80x80x4mm


QXG240B---- 50kgs Double board  double guide wheel
Per meter weight: 7.5kg,       Equipped with side rails: 80x80x4mm

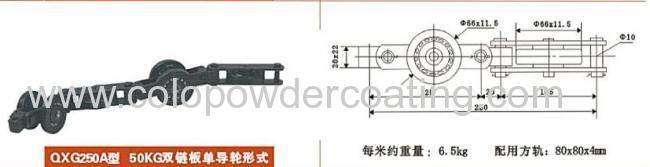

QXG250A---- 50kgs Double board  single guide wheel
Per meter weight: 6.5kg,       Equipped with side rails: 80x80x4mm

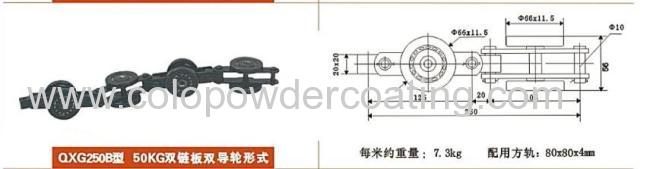

QXG250B---- 50kgs Double board double guide wheel
Per meter weight: 7.3kg,       Equipped with side rails: 80x80x4mm




QXG250A---- 100kgs Double board  single guide wheel
   Equipped with side rails: 100x100x6(5)mm
