COLO

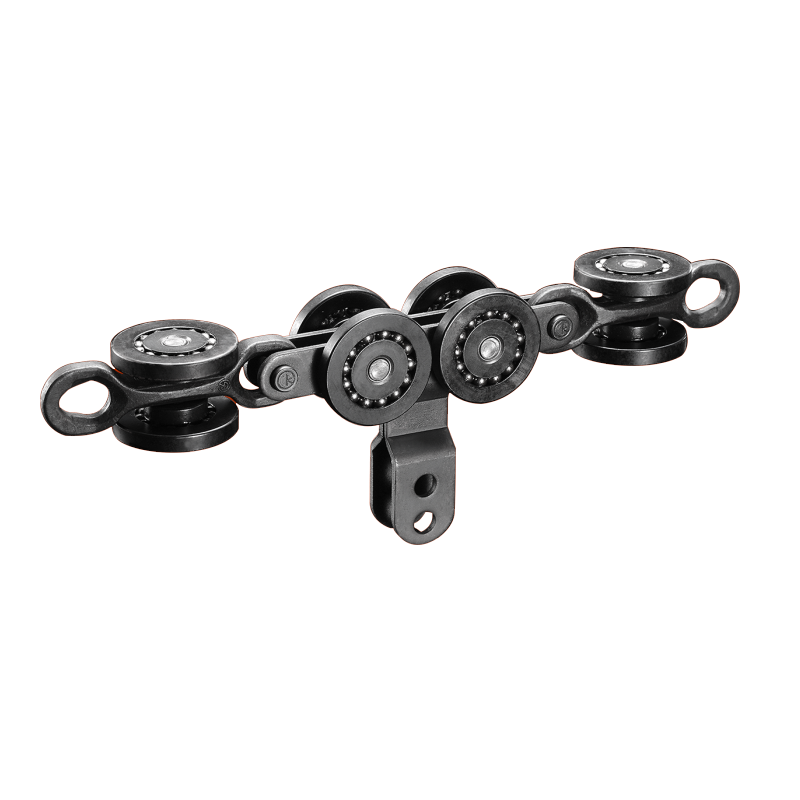

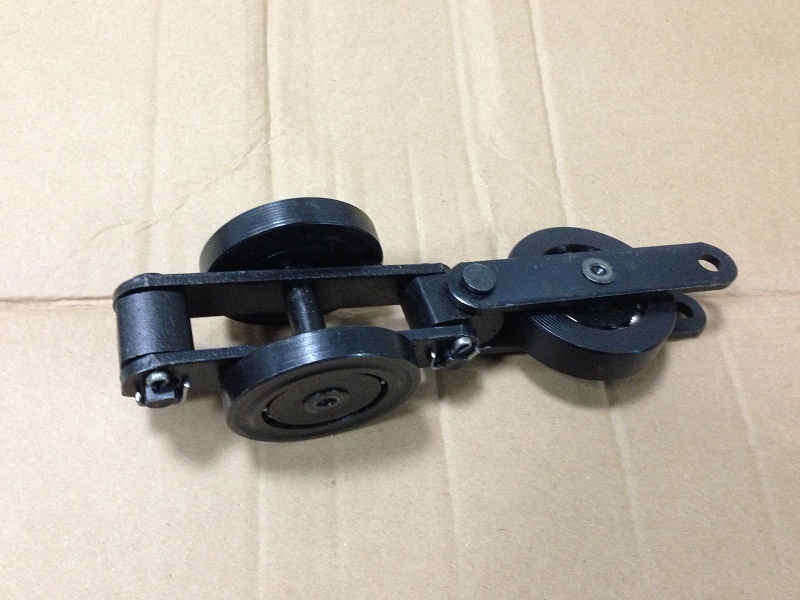

Use hangers to attach the load to the overhead conveyor chain, the overhead conveyor chain carry loads along a track with this series of smooth rolling alternating vertical and horizontal wheels.
We provide QXG series hanging conveyor chain, types includes: Type 150, Type 200, type 240,Type 250, Type 300, etc. Single point loading capacity can be: 15kgs, 30kgs, 50kgs, 75kgs.
Use hangers to attach the load to the overhead conveyor chain, the overhead conveyor chain carry loads along a track with this series of smooth rolling alternating vertical and horizontal wheels.
We provide QXG series hanging conveyor chain, types includes: Type 150, Type 200, type 240,Type 250, Type 300, etc. Single point loading capacity can be: 15kgs, 30kgs, 50kgs, 75kgs.
| UH-5075-S | UH-5075-HH | UH-5075-HV | UH-5075-HA | |
| Item | ||||
| Hanger space(mm) | 150*N | 150*N | 150*N | 150*N |
| N.W weight(kg/m) | 4.2 | 4.58 | 4.83 | 5.3 |
| Max Single-point weight(kg) | 35 | 40 | 45 | 50 |
| Max Allowed Tension (KN) | 30 | 30 | 30 | 30 |
| Max Breaking force (KN) | 55 | 55 | 55 | 55 |
| Work temperature (celsius degree) | 250 | 300 | 300 | 400 |
| UH-5075-S | UH-5075-HH | UH-5075-HV | UH-5075-HA | |
| Item | ||||
| Hanger space(mm) | 150*N | 150*N | 150*N | 150*N |
| N.W weight(kg/m) | 4.2 | 4.58 | 4.83 | 5.3 |
| Max Single-point weight(kg) | 35 | 40 | 45 | 50 |
| Max Allowed Tension (KN) | 30 | 30 | 30 | 30 |
| Max Breaking force (KN) | 55 | 55 | 55 | 55 |
| Work temperature (celsius degree) | 250 | 300 | 300 | 400 |
