Gear disc hanger, gear work with gear steak, could make workpiece turn continuously.
Gear disc hanger, gear work with gear steak, could make workpiece turn continuously .
Single point hanger, connect with chain,make install easy and fast, usually connect the Cross type hanger or SWASH TYP hanger. Cross spreader
Required and the Y-type spreader used incombination when the chain is running, cross branched angle encounteredin a specific location on the spreader diverter. Suspension of the workpiece can do 90-degree rotation.
Cross disc spreader
Cross disc the spreader structure and thecross spreader is basically the same, plus a disc at the top of the hookto catch the track drops of oil to prevent contamination of theworkpiece.
Gear disc spreade r
When the chain is running gear and fixed at aspecific location on the tooth row with the use of the workpiece thatcan be hoisted to do continuous rotation.

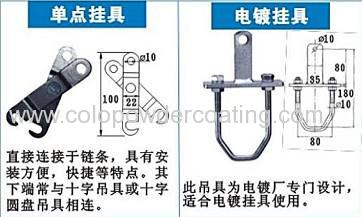

Directly connected to the chain, easy to install, fast. Its lower end is often connected with the cross the spreader or cross disc spreader
For the track connected to each other, ease of construction and maintenance, M10 * 20 bolts.
The C-type spreader, spreader designedspecifically for demanding paint factory, the middle can be attached tothe tank, to prevent dust from falling to the workpiece size accordingto customer specific.
Usually used in conjunction with the crosshanging or cross disc spreader is installed in a specific location onthe line, fixed with bolts on the track, when the cross spreader walkingto the steering gear position, cross branched tripod encounteredsteering. 90-degree rotation.
The installation of the hanger rail card andtighten the screws in the hanger, so installation location to asignificant increase in reliability, and easy disassembly.
Linked to an electroplating
This spreader is designed for electroplating factory for plating rack use.
Direct side connected to the chain, andconvenient installation features, its lower end connected to the crosshanging or cross disc spreader.
This spreader is specially designed forelectrophoresis line, in the middle can be mounted tank, to prevent dustfrom falling to the workpiece, size according to customer specific.
For a lower working environment, artificial rotation, work can be positioned every 90 degrees
The bearing spreader can be arbitraryrotation, suitable for connection with the Y-spreader should generallybe in the 15kg weight.

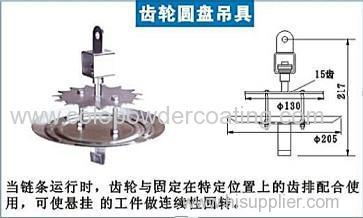

Peilin gear spreader
When the chain is running gear and fixed at aspecific location on the tooth row with the use of the workpiece thatcan be hoisted to do continuous rotation. Desirability of including one hanging piece chain is connected.
Bearing disc spreader
The bearing spreader can be rotated to increase the small disc, to prevent dust and to work.
