Tumble Belt Shot Blasting Machine

Mass-produced components, which can be tumbled, are ideal for processing in an tumble belt batch shot blasting machine products without sharp corners and suitable for rounding.
  • KF-A40


  • Zhejiang, China (Mainland)

Tumble Belt Shot Blasting Machine

The tumble belt shot blasting machine is suited for surface treatment of small and medium sized parts in batches, such as forged, cast, pressed, heat treated components without hard-to-reach corners, can be finished to the highest standard. Shot blasting performs extraordinary effective for oxide removal, core removal, rounding and other cleaning purposes.

polishing blasting machine

Tumble Belt Shot Blasting Machine Features

  1. Filter cartidge dust removing system effectively collects dust which leaves a clear working view, ensures the airflow discharged to the atmosphere is dustfree.

  2. Each blast cabinet includes durable aluminum alloy casting blast gun with durable boron carbide nozzle, as well as a pair of wear-resistent gloves.

  3. Foot pedal switch to control the work of blasting gun, which reduces the user’s fatigue, facilitates the operation and ensures the safety.

  4. The used abrasives is delivered to the bottom funnel, then sucked to the blast gun for continuous utilization, such recycling of abrasive saves cost a lot.

  5. With simple pressure regulation systems, power on/off, dust removing on/off switches.

2200826-抛丸机11jpgDust Removal System


Electric Motor

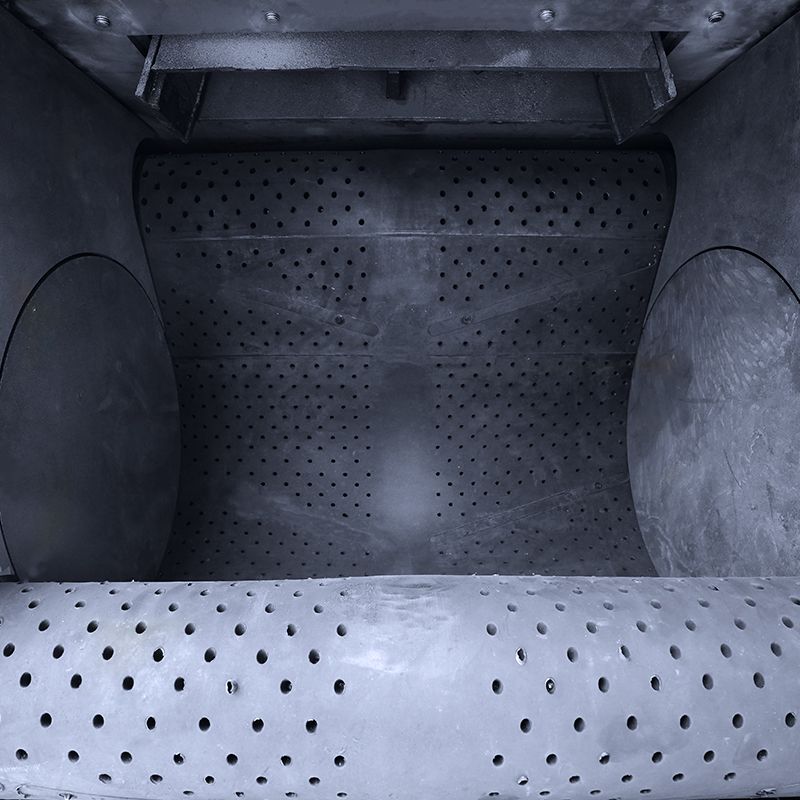

Shot Blasting Chamber

How does tumble belt shot blasting machine work?

Shot blasting machine is powered by electromechanical not by compressed air, it works through a high-speed rotating impeller to throw out steel shots in high speed and high flow, thus creates more forceful impact to surface. In the tumble belt blaster, the parts are placed in a half cylinder shaped volume constituted of three drums and a large disc and moved by swiveling through the belt motion. At the same time, turbines located at appropriate angles blasts steel particles and cleans part surfaces.


Tumble Belt Shot Blasting Machine Specifications

Cabinet worksize:

Diameter 400mm * Length 650mm
Impeller type:

Impeller head power:


Belt drive motor:


Dust removal system fan motor:


Shot lifting system:
