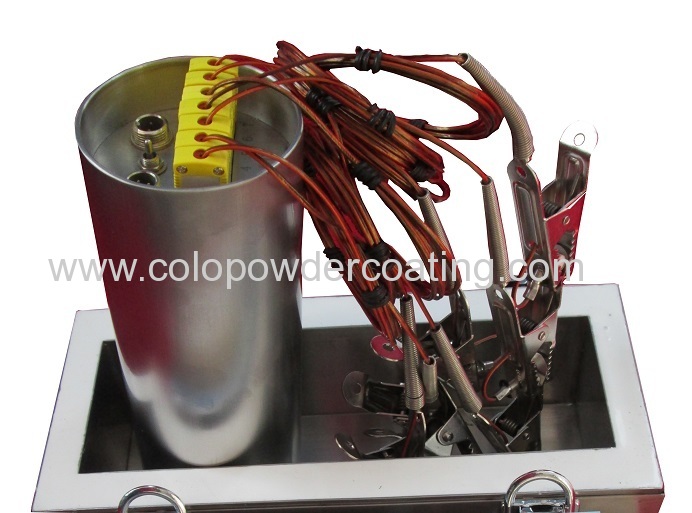

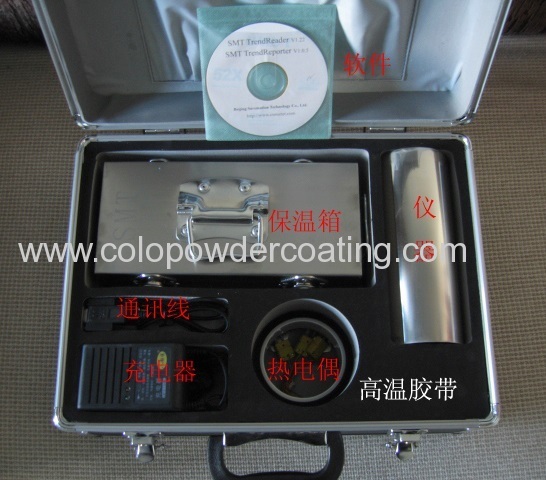

Reliable, easy to use and accurate in-process oven temperature profiling for the coating
Model: SMT-7-128300-K
Channel Number | 7 Channel | ||||
Temperature | 0~500C | Thermocouple | K | Memory | 128 K |
Resolution | 0.5C | Accuracy | 0.5% | Size | Φ76 * 200 |
Use Time | 600min under 100C ,or 120min under 200C or 60min under 300C | ||||
Recorder Time | 4h under sample rate 1s | ||||
Sample Rate | 1s, 2s, 3s, 5s, 8s, 10s, 12s, 20s,40s, 60s | ||||

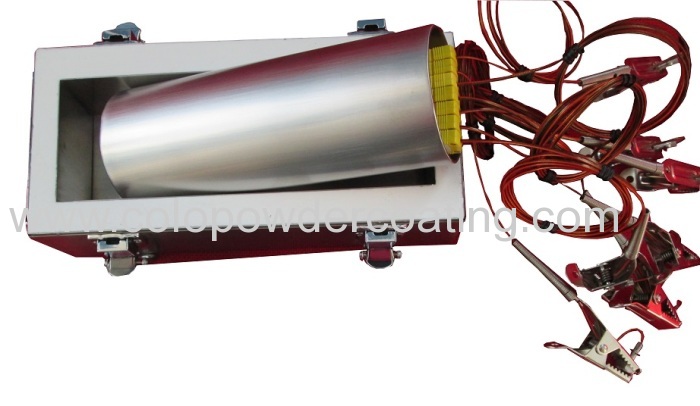

Thermal Barrier | 280(length) x 120(width) x 100(height) | ||||
Setting Software (TrendReader V1.22 )
| 1) To select or unselect each channel with Yes or NO 2) To verify the accuracy separately for each channel 3) Easy to choose sample rate 4) Switch ON/OFF | ||||

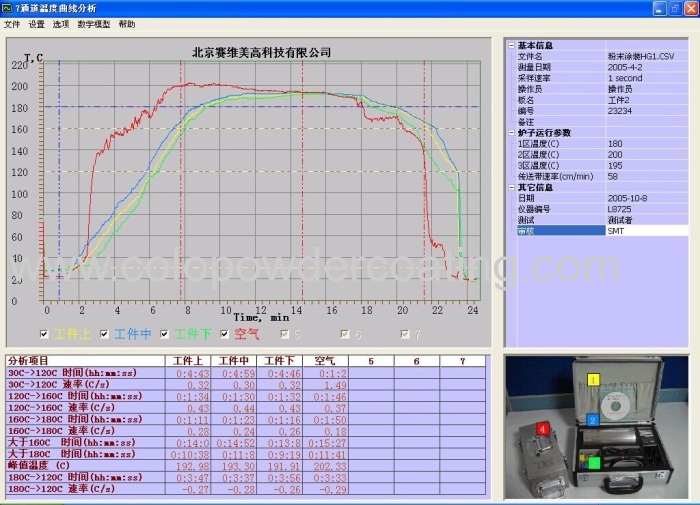

Analysis Software (TrendReporter V1.0)
| 1) To display temperature data 2) To calculate heating rate between two temperature level 3) To calculate total time above two different temperature 4) To Calculate Peak Temperature 5) To Compare different temperature profile 6) To Print Report |
SMT-7-32-300-K | Software Trendreporter |
