Powder Coating Oven Temperature Tracker

Tunnel oven Temperature Tracker

The SMT-4 system is the most reliable, high quality and less price temperature profiling system in the world.  For those who apply coatings, sell coatings, or need to know what is happening to their product inside a conveyorized or large batch oven, SMT-4 will be the best choice.

Basic Specifications:

 Number of Channels: 4

 Thermocouple Type: K

 Accuracy: 0.5%

 Sampling Rate: 1s to 60s (programmable)

Readings: 16000 for each Channel

 Thermal Barriers Dimensions: 125*110*300

 Duration: 45min@300C, or 60min @250C

 Communication with Computer: USB communication Protocol

 Start/stop Method: Press REC button to start/stop recorder data

Analysis Software:

 Peak Temperature shows the maximum temperatures at the precise time they were reached.

 Time at Temperature shows the time spent above predetermined temperature thresholds.

 View Data shows the raw temperature and time data for each thermocouple throughout the run.

 Rates of Heating and Cooling: This analysis mode calculates the rates of heating and cooling for each probe over user-defined temperature ranges, and the time the temperature is within each range.

Standard Disposition:

 SMT -4 Temperature Profile

 4set of K type Thermocouple

 USB Communication Cable

 Setting Software and Analysis Software

 Thermal Barrier

 Operating  Manual

Details:

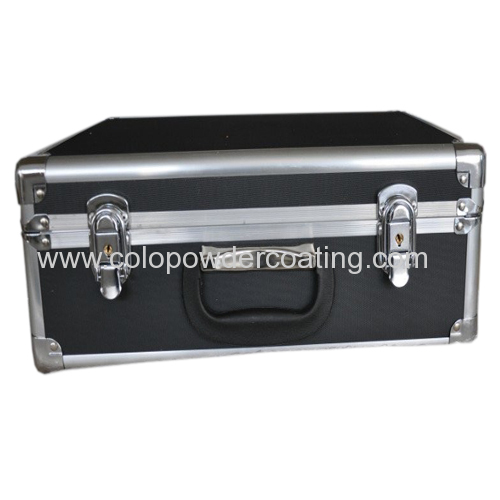

Good tool box:
