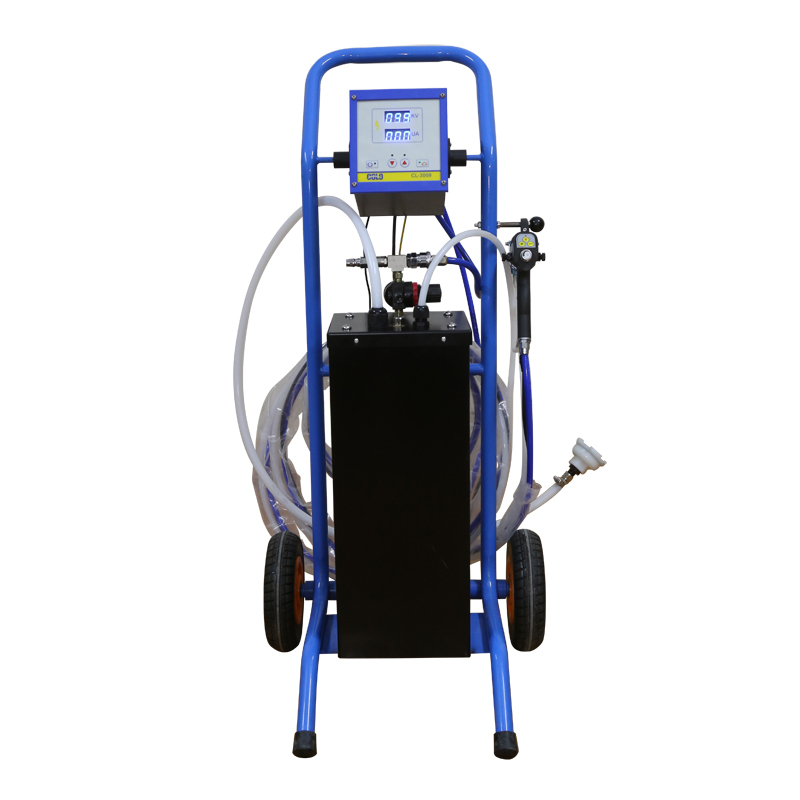

Water-based Electrostatic Paint Spray Machine

Integrated of electrostatic technology and pneumatic feed system, COLO electrostatic paint gun benefits from saving space, easy movement and beautiful appearance. Works by electrically charging paints and enables to be attracted to the grounded object, it significantly reduces painting material at the same time satisfies high quality finish.
  • COLO-3009A

  • COLO

Water-based  Electrostatic Paint Spray Machine

COLO has developed an electrostatic spraying machine using the environmental protection of water-based paint. Due to the professional electrical insulation design and special materials, this machine solves the problems of static leakage and low static electricity that often occur in the traditional water-based spraying process, improves efficiency and ensures safety.

Water-based Electrostatic Paint Spray Machine

Intelligent Electrostatic Controller

Intelligent Electrostatic Controller
Intelligent electrostatic painting gun controller, constant current to protect the circuit. It allows adjusting parameter by digital buttons and showing values digital. Accurate and convenient.
Output Voltage:10KV—80KV
Output current:10UA—25UA
Electrostatic Dispaly:LED Digital Display


Electrostatic Spray Gun

Paints are fully charged by high voltage cascade tightly close to the nozzle, which reduce the electricity consumption, and ensure best transfer efficiency.
All parameters can be adjusted on the gun, static electricity, atomized air and solvent output, new added electricity PAUSE/START function to meet complex parts painting.
Ergonomically designed manual spray gun features lightweight and easy to handle, without fatigue after long time use, leading to comfortable painting experience.

Pneumatic Double Diaphragm Pump

Pneumatic Double Diaphragm Pump

Safe and reliable diaphragm pump transfers paint flow from container to spray gun. it is in small dimension and light weight, making the machine easy to move.  Made of stainless steel and aluminum alloy materials, wear-resistant and long lifespan.

Flow: 20-500ml/min
Air Pressure Range: 0.1-0.7Mpa
Noise: <70db

Spray Gun Nozzles

Spray Gun Nozzles

Providing different kinds of spray nozzles for customer, meet demands of various of painting application. All nozzles features fine and smooth atomization, good coating effect.

Galvanized iron round spray nozzle for mild paint output,

Plastic steel round nozzle for medium-urgent paint output,

Fan spray nozzle for urgent paint output.
