Conveyor Powder Coating Line parts

  • 2000.0~5000.0 USD
  • T/T
  • Zhejiang, China (Mainland)

Product Detail

Means of Transport: Ocean,Air
Delivery Date: 15days
Automation: Automatic
spare parts: Conveyor Powder Coating Lin...
Packing: wood box
Extra Services: Painting / Powder Coating
Certification: CE

we supply kinds of spare parts for powder coating conveyor line

powder coating conveyor system accessories


Taiwan (150) five-ton crane empty chain heavy chain. The empty chain hanging 348,458,678 line 458 sites chain and all accessories, widely used in light industry, furniture, spraying production automation manufacturers.State-of-the-art, sophisticated materials, the main parts are carbon steel forging, quenching treatment from lay a solid foundation for quality management, products have been many manufacturers for many years to get the full recognition and praise of the market.
Five tons hanging space series accessories:
Chain categories: standard, horizontal wheel heavy the vertical round of heavy-duty, extra-heavy.
2 track: straight rail, horizontal elbow, lifting group, dial elbow, check rails and other special elbow.
3 Transmission: crawler driving seat, Cattle driving seat load limit driving seat

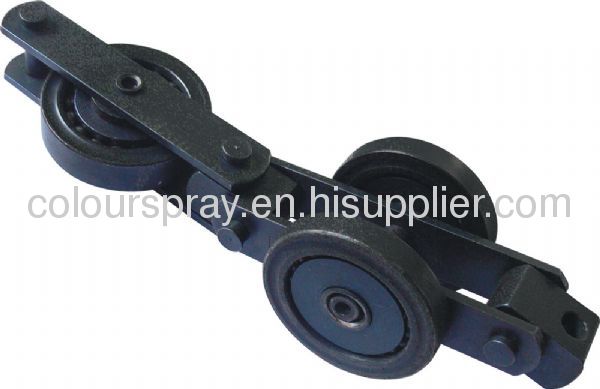

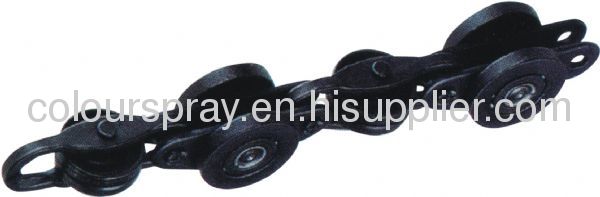

Site 348 chainFive tons of vertical wheel heavy chain

The vertical wheel to a weight bearing type, to reduce the resistance is generated by the chain after lifting the elbow, to increase its carrying capacity and wear resistance, and suitable for frequent lifting or high temperature environment.


Parameters: Chain pitch: 76.6mm,
Single hanging point load: 100kg
Minimum hanging pitch: 306.4mm,
Allowable chain tension: 900kg
Chain limit load: 10900kg,
Carriage allowable load: 1100kg,
Carriage limit load 1800kg,
Track Type: work,
Minimum horizontal radius of gyration: R300,
Minimum vertical bending radius: R1200

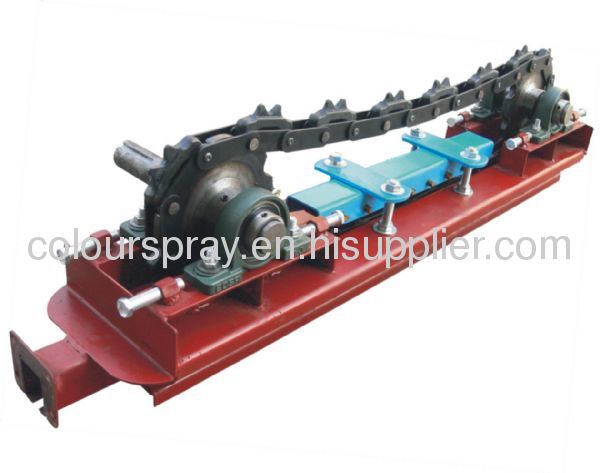

Crawler driving seat
principle speed motor output power, after reducer by force, passed to drive the track, by the finger on the drive the track to toggle the conveyor chain. So that the chain is moved forward. Smooth transmission, low noise, high reliability of the transmission of power

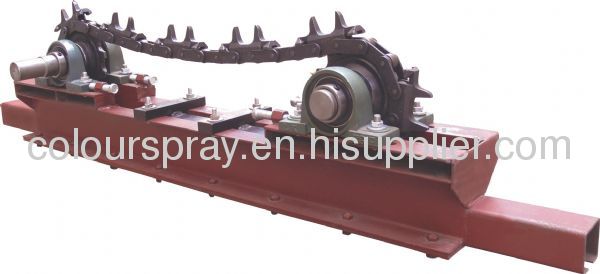

crawler load limit driving seat


The installation of a spring limited pull in the ordinary crawler drive seat, when the abnormal situation during operation of the chain jammed throughout the driving seat to move some distance, running in the opposite direction to the chain when it hits installed in a specificthe position of the switch, the conveyor stopped and the police. When troubleshooting, it is automatically restored to its original position.Balanced transmission, low noise, transmission power, high reliability.











crawler load limit driving seat

The installation of a spring limited pull in the ordinary crawler drive seat, when the abnormal situation during operation of the chain jammed throughout the driving seat to move some distance, running in the opposite direction to the chain when it hits installed in a specificthe position of the switch, the conveyor stopped and the police. When troubleshooting, it is automatically restored to its original position. Balanced transmission, low noise, and high reliability of the transmission of power

Overhead Conveyor Powder Coating Line weight hanging tensioning device

Rely the counterweight tray weight on the device, automatically adjust the tightness of the chain. In order to ensure the normal operation of the drive unit. Tension is relatively stable, the broader scope of application.


Overhead Conveyor Powder Coating Line
Spring tensioning device
