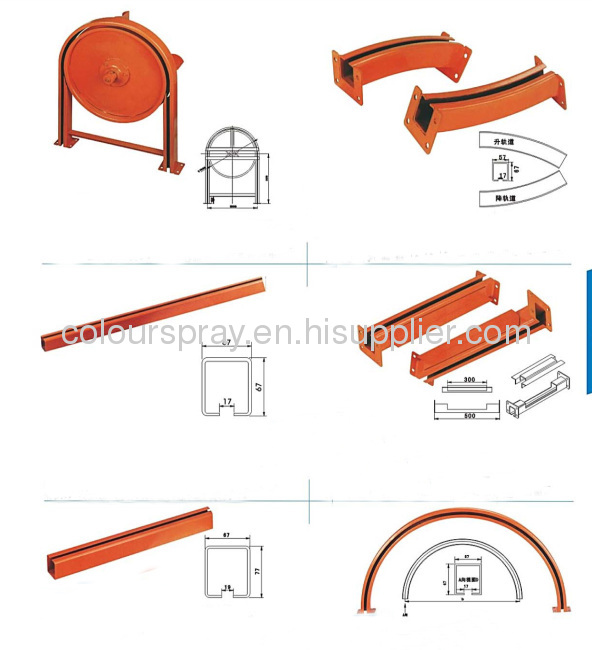

The elbow between the center of the disc rotatable about the center axis of rotation of 360 ° applies to the turning radius smaller occasions, can reduce the frictional resistance generated when the chain through the elbow, and convenient.
Lift -bend curved track For the conveyor chain walking to rise and fall at the standard diameter of 1.2 * 180 °, any angle cutting can be done according to the installation site.
Straight track For conveyor chain walking straight and level at Standard length of 3 meters. You can do any length according to the installation site cutting.
Checkingrail There is a can open the opening of the track. Through this opening, disassembly, inspection and maintenance of conveyor chain, each conveyor line drive device should be configured with a set of check rail. It is generally located in the drive unit exported to the tensioning device, to facilitate inspection, repair place.
Temperature telescoping tube I plant the production of the telescoping tube when the transmission lines by temperature changes in a larger area, complement regular device designed to absorb orbit due to elongation and shortening.
Horizontal curved track Walking the horizontal bend for the conveyor chain, standard diameter Φ0.8m-2m X180 ° for any angle cutting according to the installation site.
