COLO-Line
COLO
Automatic powder coating line designed according to the Mexico customer's requirements for high output and get two different color with double automatic powder coating spray booth.
Applied to the internal and external spraying of fan motor cover, the output can reach 300 pieces every 8 hours.
It including two automatic powder spray booth, custom powder coating oven and automatic powder coating reciprocator, overhead conveyor, powder seiving machine.

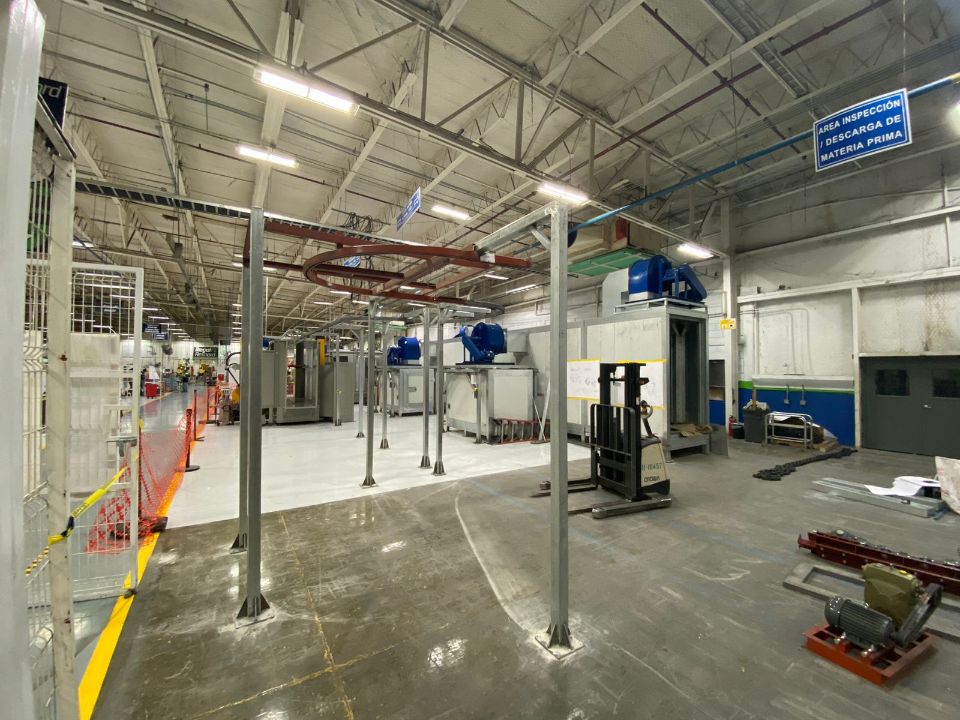

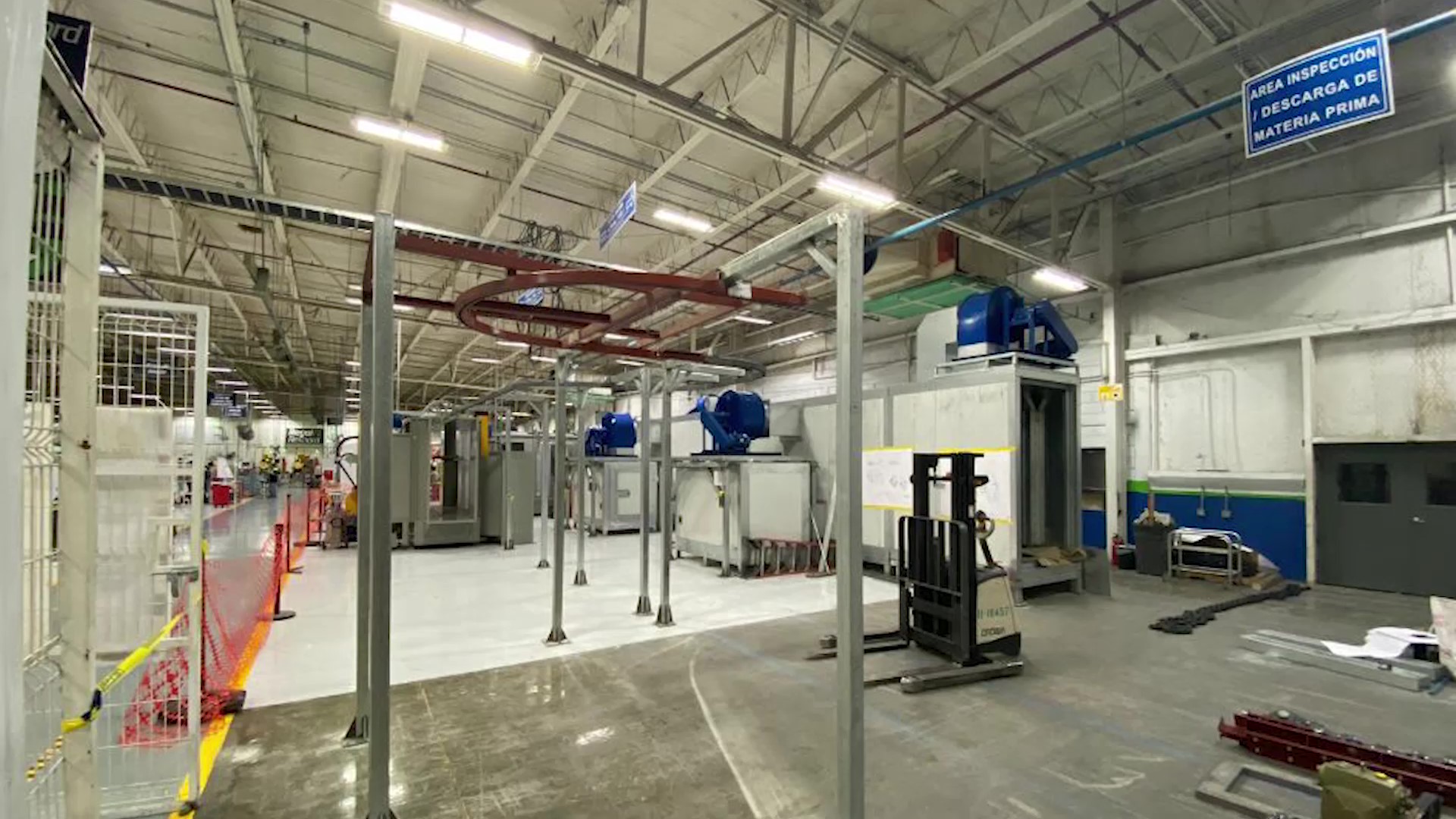

Powder Coating Overhead Conveyor System
Overhead conveyor system is the most commonly used solution for wet paint or powder coating finishing. The type of conveyor selected for your operation will depend on the weight, size and even the shape of the items being transported. We we can design whole conveyor system specially for your needs.
Conveyor System Specifications
| Model | UH-5075-S |
| Total length | 74m |
| Means of delivery | Double point hanging |
| Single point load | ≤35kgs |
| Power | 2.2kw |
| Speed | 1.5m/min(adjustable) |
| Drive unit | 1 set |
| Tension system | 1 set |
| Urgent stop unit | 4 sets |

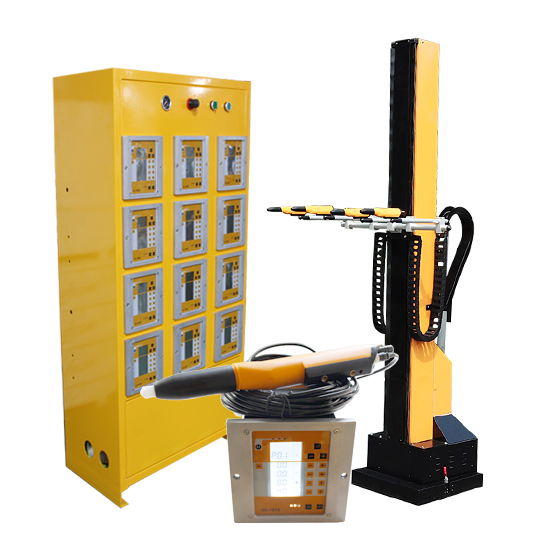

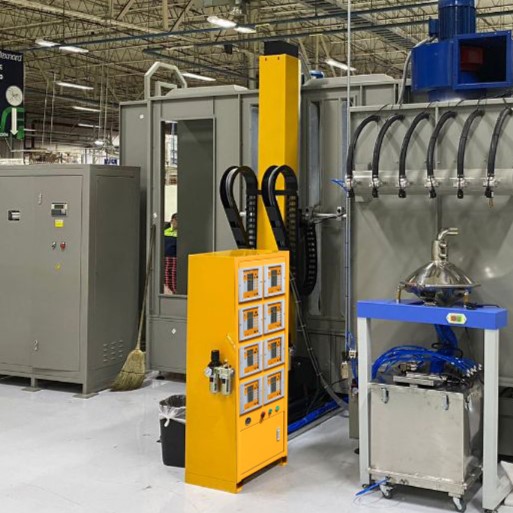

Automatic Powder Coating System
COLO-2000D reciprocator with COLO-191s automatic powder coating gun is a perfect set for automatic powder coating , the failure rate is low, frequent maintenance is not required, the service life is long, and the spraying quality is excellent.
Usually, the automatic filter powder spray booth is used in conjunction with the powder sieving machine, which can substantially reduce labour cost & eliminate wastage.
Automatic Powder Coating Reciprocator
1.The moving stroke and speed can be adjusted on the control panel, the operation is simple, and 80 sets of spraying modes can be stored.
2.Up to 12 automatic spray guns can be installed, which can be reasonably matched and installed according to production.
requirements.
3.Driven by high-precision wear-resistant metal chain, smooth and accurate operation, avoid powder waste.
COLO-2000D Automatic Reciprocator Specifications
| Model | COLO-2000D |
| Power Supply | AC 220V/110V 50-60hz |
| Motor Power | 0.75 kW |
| Speed | 0-0.8m/s(0-50m/min) |
| Acceleration | 1 m/s |
| Max. Loading Capacity | 25 kg |
| Controller | Digital |
| Motor | Frequency Adjustable |
| Stroke | 2m |
| Qty of Spray Guns Loading | 2-12 pcs |
Automatic Powder Sieving Machine
1. Installing sieving mesh with hoop and sealing strip, eliminates noise andprevents leakage.
2. Made of 2.5mm Coated iron, sturdy and durable. Compact structure is easyto move and saves space.
3. Durable stainless steel sieving mesh has a variety of sizes for sieving the different powder particles.
4. Mounted with big capacity powder hopper supports continuous production.
Automatic Powder Sieving Machine Specifications
| Model | COLO-3000-S |
| Weight | 22 kg |
| Voltage | 220V / 110V |
| Power | 50 W |
| Operating Frequency | 50 Hz |
| Motor Rotation | positive and reverse can be |
| Powder Tank | 55*55 cm or 68*68cm |

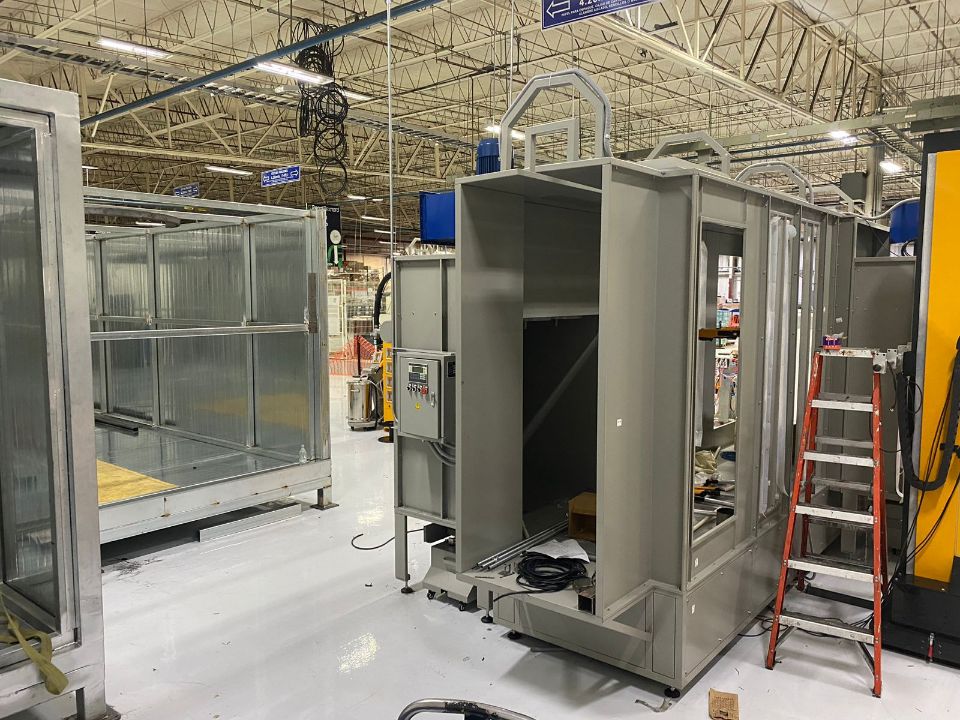

Automatic Powder Coating Booth
1. Double filter stage recovery systems effectively capture oversprayed powder, 0.1micron high precision filters ensures only particle-free air discharged outside.
COLO-0825 Powder Coating Booth Specifications
| Model | COLO-S-0825 |
| Operating Dimensions | Width1120 * Height2000 * Depth4000mm |
| Overall dimensions | Width3869 * Height3063 * Depth5000mm |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 5.5kw, 2 sets |
| Filter Count | 12 pcs(2 stages), Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |

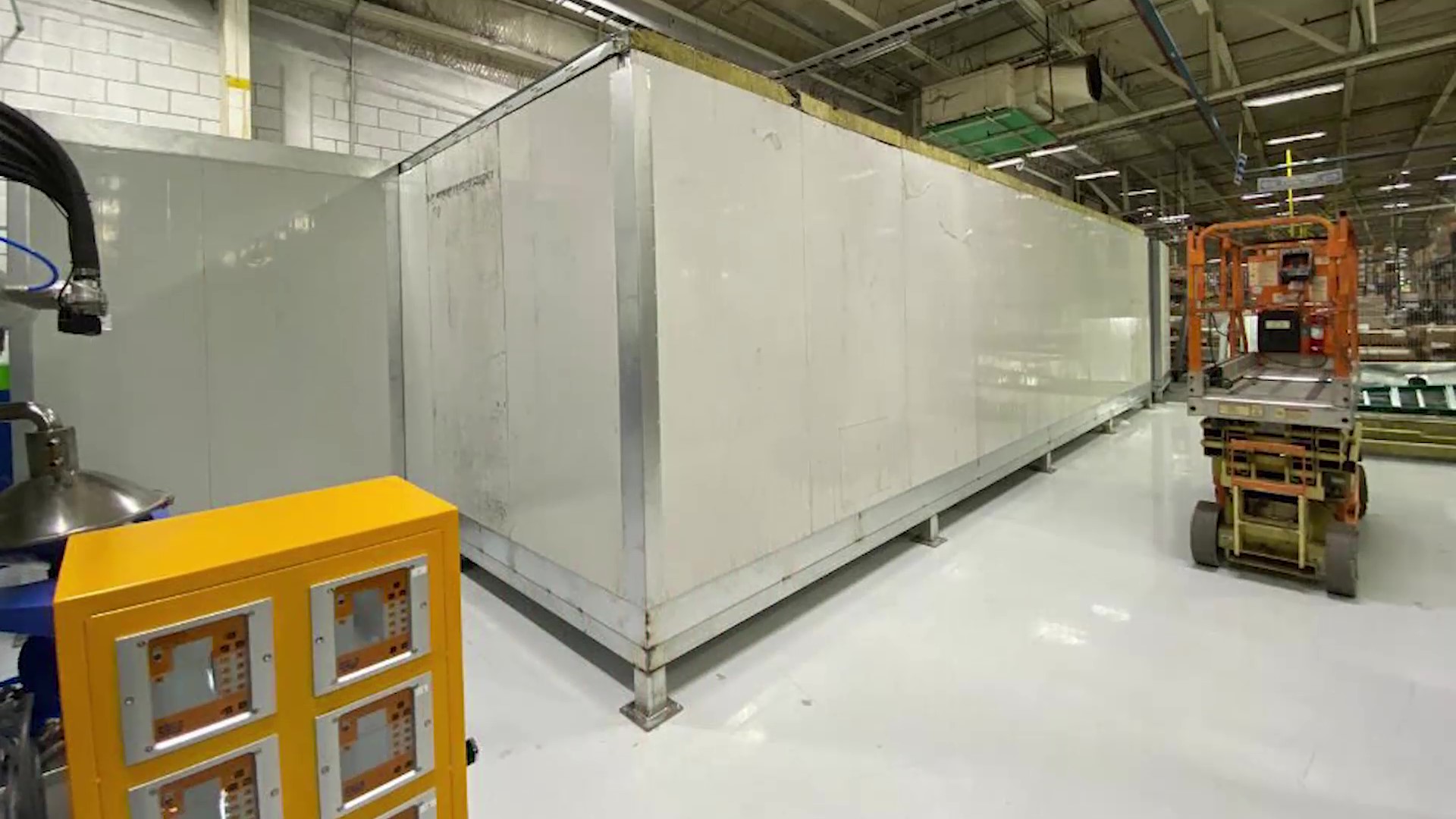

Customized Powder Coating Oven
1. Completely new 100mm thickness rock wool board is perfectly to keep the temperature inside of oven which is very important.
3. It's a convection oven with indirect heating type,use heating exchange(stainless steel),more clean heat air and long life span.
4. PLC control system to operate the oven heating performance easily and precisely.
5. COLO powder coating ovens are designed to safely and efficiently cure previously applied powder coating media.
Custom Powder Coating Oven Specifications
| Worksize dimensions | Length8800 * Width4300* Height2430 mm |
| Overall dimensions | Length14500 * Width6750 * Height3900 mm |
| Heating method | Electric |
| Electric heating tube power | 3kw (180pcs) |
| Voltage | 380V/220v |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 9500-12000m3/h |
| Fan Motor power | 7.5kw (2 Set) |
| Circulation/ Air flow Vertical | Variable through holes on the walls |
| Warranty | 12 months |
Why Choose COLO Powder Coating Lines?
We manufacture efficient powder coating line to meet the various requirements of our customers. We make sure to use the latest technology and have been praised by customers from all over the world. We believe that our quality will bring you a good shopping experience.
Our products are durable, easy to install, easy to clean and low cost. Our powder coatings are quality approved materials purchased from market leading suppliers and these products are checked for various quality parameters. If you have any needs, you can also let us know, we can customize it according to your requirements.
