Automatic Powder Feeder System in Powder Coating Line

Cleaner, faster and optimized for a complete powder management solution, allows you to take control of your powder coating operation.
- PLC Control System
- Touch Screen Operation Interface
- Powder Position Tracking
- Absolute Position Induction
- Powder Suction Tube Vertical Lifting
- Powder Recovey & Sieving Control
- Automatic Powder Cleaning Device
- Powder Hopper Vibrating & Fluidzing System

Quantity:
  • COLO-6000
  • COLO

Design Purpose of Powder Feeding System


Continuously, uniformly, quantificationally feed the powder to the spray gun, applied in an automatic powder coating line to improve application quality as well as increase efficiency by fast color changes. The powder guns, powder hoses and injectors will stay clean automatically during color change. The unit is fully programmable.

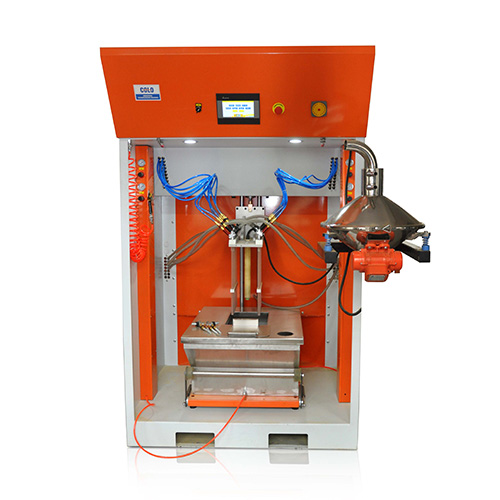

powder feeding center



Detailed Functions and Advantages of Powder Feed System


  • Incorperating a lifting venturi-injector stage with powder detector, no matter in low or high position of the powder, the suction tube always stay in an optimal fluidizing area, ensures smooth powder feeding.

  • The venturi-injector stage lifter use anti-dust, stable lifting air cyclinder.

  • The substrate of the microporous plate is meticulous and uniform, in good fluidizing function.

  • Installed with vibration powder siever, ensures the purity of recovery powders, which could mix with fresh powders in proportion for recycling. Such design increases the powder utilization and save cost.

  • The controlling system will alarm once lack of powder, warning operators to feed powders in time

  • PLC programming control, touch screen operation, user-friendly and convenient for debugging.

  • A pulse-jet device that automaticlly clean spray gun and pipeline rapidly, at the same time if this device is connected with cyclone system, it will make the powder feeder chamber in negative pressure, create clean working environment and achieve fast color change.

  • A filter system maintains a comfortable internal environment by transferring dust during cleaning.

powder feed center


Technical Parameter


1. Power supply voltage: 1P 110V/220VAC

2. Power: 500W.

3. Air pressure: 0.6-0.8MP.

4. Can be equipped with up to 16 powder pump.
