Manual Powder Coating Machine with Hopper

The K1 series powder coating machine with proved performance specially balanced for the maximum spray capability with the smoothest finish possible.
Availability:
Quantity:
  • KF-K1
  • KAFAN

Manual Powder Coating Machine with Hopper


KAFAN K1 Powder Coating Machine designed with user-friendly inteliigent controllers, which is convenient to change the shape for coating, and create excellent finish for all kinds of parts. Hopper fed powder coating machine ares the perfect choice for those large, single-color powder coating jobs, capable of holding up to 60 lbs.

9

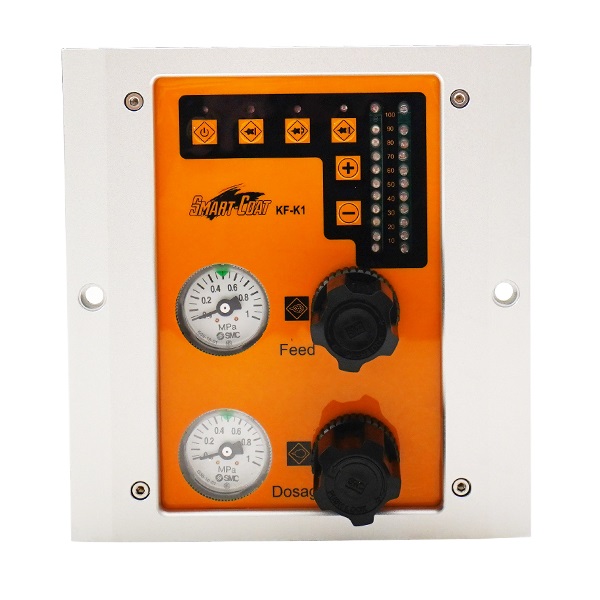

KF-K1 Powder Gun Controller

powder coating controller1. 0-100kv voltage adjustable.  Easily set values and read on digital display, which is powerful enough to handle any shape of parts.


2. For beginners we offer one-touch intelligent operation buttons that stands for three pre-sets application programs:

Flat coating: ideal for flat shape workpieces.

Corner coating: ideal for complex shape parts with deep corners.

Recoating: ideal for repairing coating.



COLO-08 Manual Spray Gun Features

powder coating spray gun

1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.


2. 100 kV manual spray gun maximizes powder charging capacity meanwhile ensures safe operation and efficiency during long lasting use.


3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.



70lbs Powder Coating Fluidizing Hopper

powder hopper 1.70lbs Bucket hopper for big or nomal scale powder coating production.

2. Fully assembled with fluidizing bed and powder suction tube.

3. The whole hopper can be detaches into pieces for easily thorough cleaning.

4. Our powder container are made from stainless steel, or powder-coated steel, durable, anti-rust and long lasting.




KF-K1 Powder Coating Machine Technical Data

Gun Weight
500g
Power source
AC 220V/110V
Power
40W
Input Voltage
24V
Polarity
Negative
Max Power Injection
550g/min
Pulse Frequency
15~20 Clock /S
Gun Cable
5 meters
Frequency
50-60 Hz
Max Output Current
150 μA
Output Voltage
100 KV
High Pressure Mode
Built-in
Max Air Consumption
13Nm3/h
Working Temperature Range
-10 ~45°C
